4A, 23V, 500kHz, ACOT™ Synchronous Buck Converter

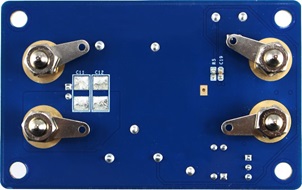

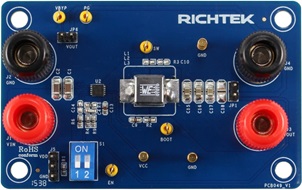

EVB_RT6219AGQW

ACTIVE

The RT6219A is a synchronous Buck converter with Advanced Constant On-Time (ACOT^TM) mode control which provides a very fast transient response with no external compensators. The RT6219A operates from 5V to 23V input voltage, provides complete protection functions including Over Current Protection (OCP), Under Voltage Protection (UVP) and Over Voltage Protection (OVP). This IC also provides a 1.5ms internal soft-start function and an open-drain power good indicator.

Title	Last Update	Share
Evaluation Board User Guide	2015/11/13	Email RSS Facebook Google+ twitter Linkedin
Bill of Materials	2015/11/13	Email RSS Facebook Google+ twitter Linkedin
Gerber File	2015/11/13	Email RSS Facebook Google+ twitter Linkedin
Schematic	2015/11/13	Email RSS Facebook Google+ twitter Linkedin

RT6219

The RT6219 is a synchronous Buck converter with Advanced Constant On-Time (ACOT^®) mode control which provides a very fast transient response with no external compensators. The RT6219 operates from 5V to 23V input voltage, provides complete protection functions including Over Current Protection(OCP), Under Voltage Protection (UVP) and Over Voltage Protection (OVP). This IC also provides a 1.5ms internal soft-start function and an open-drain power good indicator.

IC
Part Number	Package Type	Package Qty.	Free Sample	Distributor	Stock	Buy From Authorized Distributor
RT6219AGQW	WDFN3x3-10	1,500	Request	Digikey	2,793	Buy
				Mouser	0	Lead-Time: 14 weeks

Please confirm with our distributor or sales representative for actual stock status.
